• We are one of the renowned manufacturer and supplier of a wide gamut of cutting machinery.

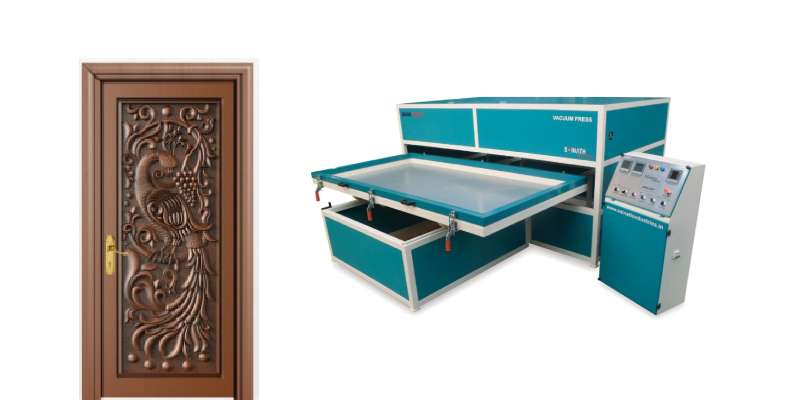

Used for applying a uniform lamination of PVC, decorative papers and vaneer till 0.4mm on top surface and borders on flat & designed work piece having smooth shape.

  • Vacuum abnormality wrapping technology
  • Various models available having single table or double table construction
  • Lamination of PVC foil on one side of MDF, Particle board & solid wood
  • Silicon membrane offered for veneer application
  • Short pressing cycles
  • High grade cacuum pump is efficient, stable and long life.
  • Silicon membrane sheet & five nos spare bulb are standard supply with machine.
  • Centralized control panel for controls and display with temperature controllers and adjustable timers for fully automatic cycle.
  • Manual feeding of single loading tray. Special steel work table is proof against high temprature. PVC foil roll holder with stand.
Sr. No. Specification Unit Technical Parameter-SI-1102
1 No. of working tables Nos. 1 / 2
2 Work table size ( L X B) mm 2500 x 1300
3 Maximum height of work piece mm 50
4 Total power kw 18
5 Vaccum mpa -0.1
6 Height System Heat Rod (1200W)/ Infrared Bulb (philips 250w)
7 Controls Manual / Auto
8 Application MDF/ HDF/ Flus Door
9 Lamination Material PVC foil
10 PVC Foil Thickness 0.30mm
11 Vaccum Pump Bussh Germany Make
12 Sensor Laser sensor
