| Sr. No. |
Specification |
Unit |

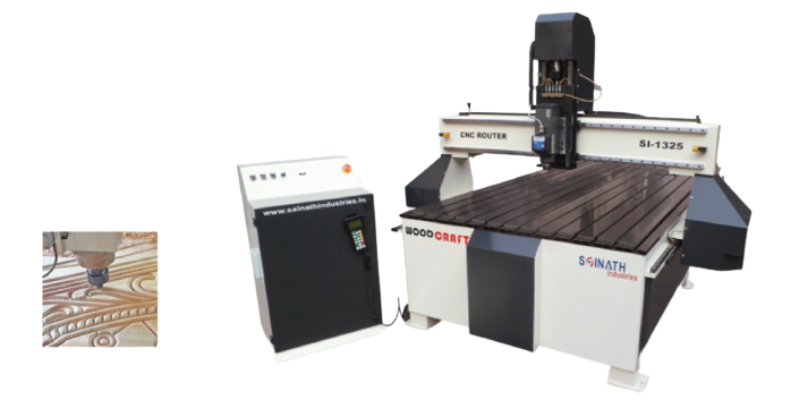

Technical Parameter - SI - 1325 |
| 1 |
Drive Motors |
|
Servo Motor & Drive Weiheng 750W |
| 2 |
Controls |
|
DSP Weiheng NK105G2 |
| 3 |
X-Y Movement |
|
Rack & Pinion, Gear Drive,25mm THK Japan with Planetary Gear Box |
| 4 |
Z Movement |
|
25mm, Ball Screw Drive, THK |
| 5 |
Computer interface |
|
USB 2.0 |
| 6 |
Command Code |
|
G Code |
| 7 |
Spindle |
|
6kw, Air Cooling, 18000 RPM, Italy Make |
| 8 |
Oil Lubrication System |
|
Standard |
| 9 |
Working Voltage |
|
AC 380V / IIz,3 Ø |
| 10 |
Suitable Software |
|
Art Cam, Type 3, Any Cam Software |
| 11 |
Maximum Speed |
mm/min |
35000 |
| 12 |
Resolutions |
mm |
0.025 |
| 13 |
X-Y-Z Axis Working Area |
mm |
1300 x 2500 x 200 |
| 14 |
Maximum Cutting Speed |
mm/min |
25000 |
| 15 |
Collet Type & Size |
mm |
ER 32 |
| 16 |
Machine Size |
mm |
1750 x 2760 X 1500 |
| 17 |
Packing Dimensions |
mm |
1860 x 3160 x 1720 |
| 18 |
Approx. Weight |
kgs |
1200 |
