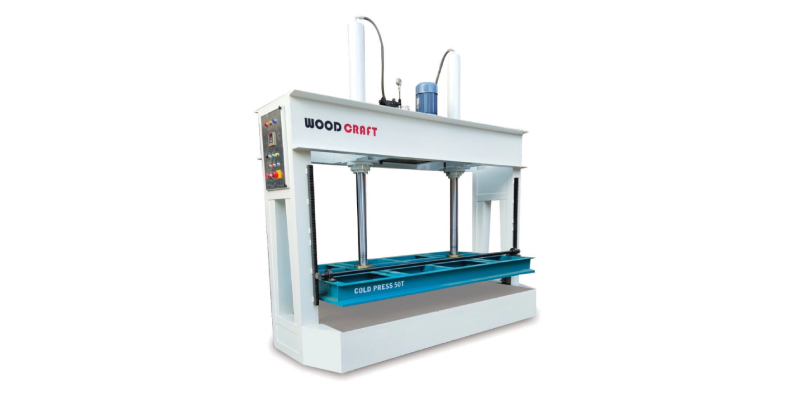

Cold Press 50 T
Machine ideally suitable for pressing various types of laminations on composite wood, Cord board, fiber board, honey comb board.
Suitable for pressing & laminating on fiber boards, decorative papers, plywood & other lamination sheets. Use for various applications for furniture's & board lamination industries. It can be used for particle / MDF / HDF board.
- Mainly use to press various glued wood parts in usual temperature.
- Machine has characteristics as good splicing effect & fast high efficiency.
- Manual & semi automatics controls.
- Rigid construction
- Emergency stop switches
- Motor overload relay
| Sr. No. | Specification | Unit | Technical Parameter-SI-50T |
| 1 | Maximum load on work table | Ton | 50 |
| 2 | Platen Size | mm | 2500 x 1300 |
| 3 | Maximum platen opening | mm | 1000 |
| 4 | Number of hydraulic cylinder | Nos | 2 |
| 5 | Size of hydraulic cylinder | mm | 140 Ø |
| 6 | lnstalled power | kw | 3.7 |
| 7 | Machine Dimension (L x B x H) | mm | 2700 x 1300 x 3500 |
| 8 | Approx.net weight | Kgs. | 2600 |
