• We are one of the renowned manufacturer and supplier of a wide gamut of cutting machinery.

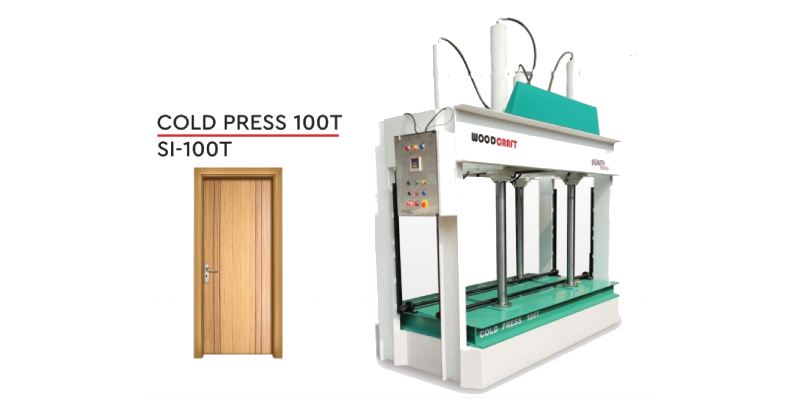

Cold Press 100 T

Machine ideally suitable for pressing various types of laminations on composite wood, Cord board, fiber board, honey comb board.

Suitable for pressing & laminating on fiber boards, decorative papers, plywood & other lamination sheets. Use for various applications for furniture's & board lamination industries. It can be used for particle / MDF / HDF board.

  • Mainly use to press various glued wood parts in usual temperature.
  • Machine has characteristics as good splicing effect & fast high efficiency.
  • Manual & semi automatic controls.
  • Rigid construction
  • Emergency stop switches
  • Motor overload relay
Sr. No. Specification Unit Technical Parameter-SI-100T
1 Maximum load on work table Ton 100
2 Platen Size mm 2500 x 1300
3 Maximum platen opening mm 1000
4 Number of hydraulic cylinder Nos 4
5 Size of hydraulic cylinder mm 150 Ø
6 lnstalled power kw 5.5
7 Machine Dimension (L x B x H) mm 2700 x 1300 x 3500
8 Approx.net weight Kgs. 2800
