Welcome to Sainath Industries

We at Sainath Industries are committed to produce & deliver 100% in house manufactured wood working machines, having expertise of manufacturing & marketing combination of 20+ years, we are confident to deliver customize requirement of machines for various wood working applications.

About Sainath Industries

We at Sainath Industries are committed to produce & deliver 100% in house manufactured wood working machines, having expertise of manufacturing & marketing combination of 20+ years, we are confident to deliver customize requirement of machines for various wood working applications.

“WOODCRAFT” has settled an example of redesigning benchmark for engineering experts, by delivering proven machines as under

We are one of the renowned manufacturer and supplier of a wide gamut of Cutting Machinery. Our machines are acclaimed in the market for their superior performance, easy installation and low maintenance.

Product

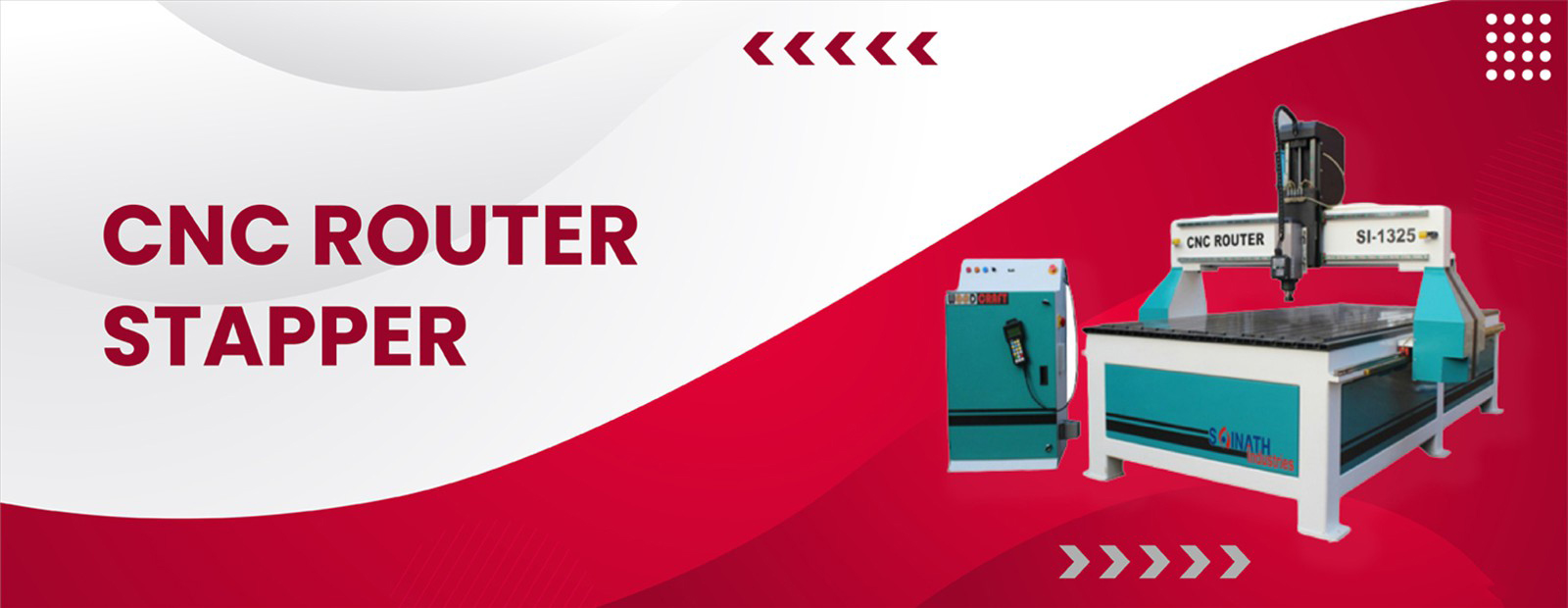

CNC ROUTER STAPPER
Sr. No. Technical Parameter Unit Technical Parameter
1 Drive Motors   Stapper
2 Controls   Digital Signal Processor
3 X-Y Movement   Rack & Pinion, Gear Drive,Taiwan
4 Z Movement   Ball Screw Drive,  Germany
5 Computer interface   USB 2.0
6 Command Code   G Code
7 Spindle   HSD 6kw, Air Cooling,  18000 RPM,  Italy
8 Oil Lubrication System   Standard
9 Working Voltage   AC 380V / IIz,3 Ø
10 Software   Optional
11 Maximum Speed mm/min 35000
12 Resolutions mm 0.025
13 X-Y-Z Axis Working Area mm 1220 x 2440 x 180
14 Maximum Cutting Speed mm/min 25000
15 Collet Type & Size mm ER 32 (12.7, 6, 3.175)
16 Machine Size mm 1750 x 2760
17 Packing Dimensions mm 3160 x 1860 x 1720
18 Approx. Weight kgs 1250 kg (appx)
LASER CUTTING MACHINE
Sr. No. Specification Unit Technical Parameter
1 Drive Motors Micro Stepping Motor
2 Controls DSP Working size 47"x35"
3 Max Thickness 18mm
4 Laser Tube type Co2 Glass Sealed Laser Tube
5 Computer interface USB 2.0 and USB Disk
6 Laser Power 80W / 100W / 130W
7 Software Leetro / RD CAM
8 Maximum Speed mm/s 1000
9 Resolutions DPI 2500
10 Machine Dimension mm 1800 * 1360 * 1070
11 Packing Dimensions mm 1950 * 1950 * 1260
12 N.W/G.W kgs 270 kg / 350kg
13 Location Precision <0.02mm
VACCUM MEMBRANE PRESS
Sr. No. Specification Unit Technical Parameter
1 No. of working tables Nos. 1
2 Work table size ( L X B) mm 2300 x 1100
3 Maximum height of work piece mm 50
4 Total power kw 15
5 Vaccum mpa -0.1
6 Approx.overall machine dimension (L x B x H) mm 5500 x 1450 x 1400
7 Approx.net weight Kgs. 1500
PANEL SAW
Sr. No. Technical Parameter Unit
1 Dimension of Sliding Table 3200mm x 360mm
2 Gross Cut Capacity 3200mm x 360mm
3 Width of Cut Between Saw Blade and Rip Fence 1250mm
4 Saw Blade Diameter 300m (250-300)
5 Height of Cut 80mm
6 Speed of Main Saw Spindle 4000/6000rpm
7 Spindle Diameter 30mm
8 Tilting Saw Blade 0-45 ?
9 Main Motor 5.5kw
10 Scoring Saw Blade Diameter 120mm
11 Speed of Scoring Saw Blade 9000r/min
12 Scoring Spindle Diameter 20mm
13 Scoring Motor 0.75kw
14 Overall Dimension 3250 x 3250 x 900 (mm)
MANUAL EDGE BENDER
Sr. No. Technical Parameter Unit
1 Table Size 1200 mm x 900 mm
2 Work Piece Thickness 10 mm to 60 mm
3 Tape Thickness 0.5 mm to 3 mm
4 Glue Pot Capacity 3 KG appx
5 Heating Power 3 kw
6 Motor Power 1 HP
7 Feeding Speed 5 -10 Mtr
8 Control of Edge Band Cutting Foot Switch OR Limit Switch
9 Air Pressure 5 kg - 7 kg / cm2
10 Tape Coil  Diameter 525 mm
11 Weight 400 KG (appx)
COLD PRESS
Sr. No. Technical Parameter Unit Technical Parameter
1 Maximum load on work table Ton 50
2 Platen Size mm 2500 x 1300
3 Maximum platen opening mm 1000
4 Number of hydraulic cylinder Nos 2
5 Size of hydraulic cylinder mm 150 Ø
6 lnstalled power kw 3.7
7 Machine Dimension (L x B x H) mm 2700 x 1300 x 3500
8 Approx.net weight Kgs. 2800
